MotherBoard JCOM to DB9 female

By HKL, on Friday 2018-11-30 07:00, tagged: 🏷️Operating 🏷️Hardware

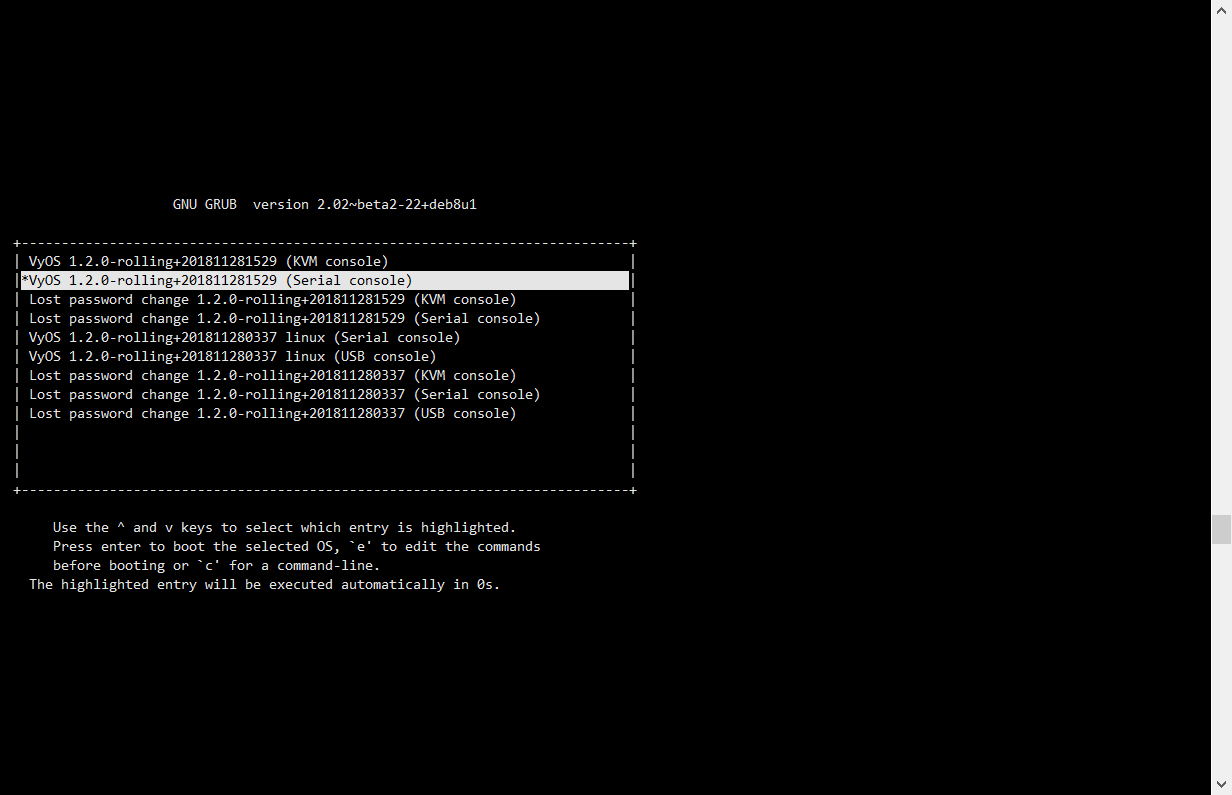

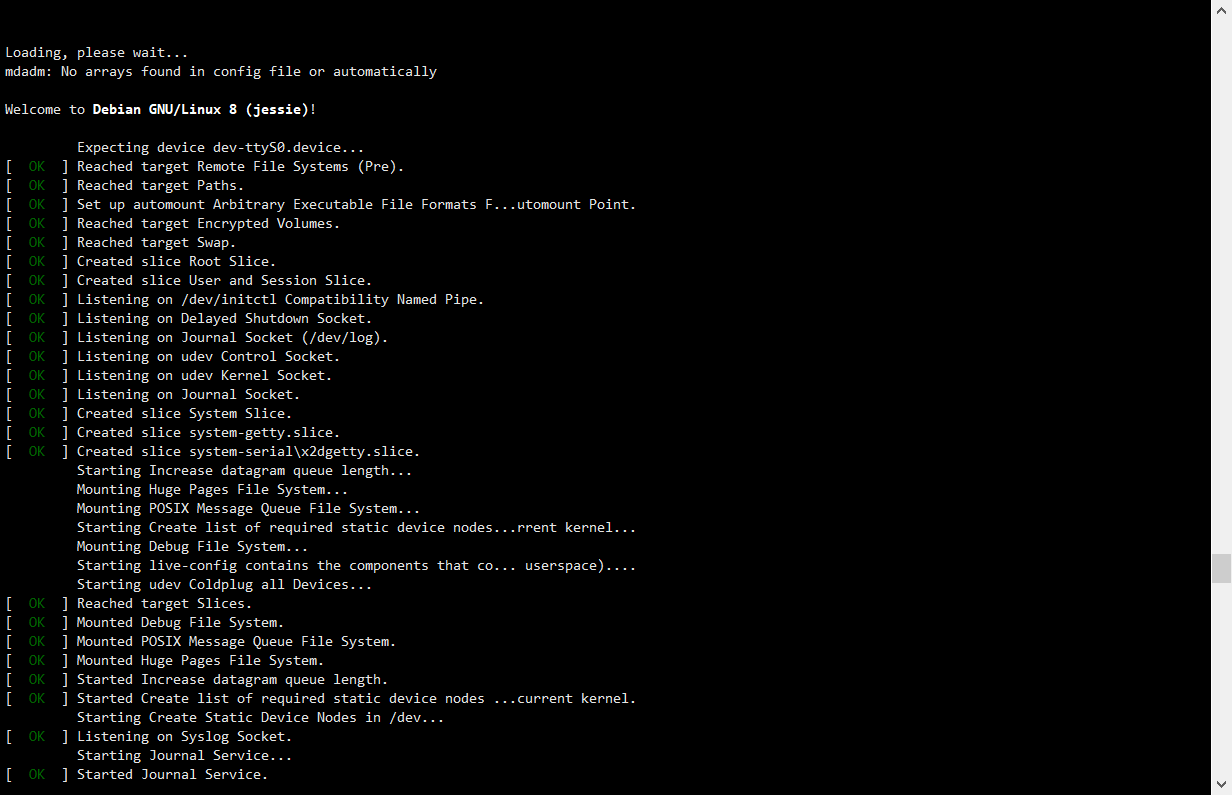

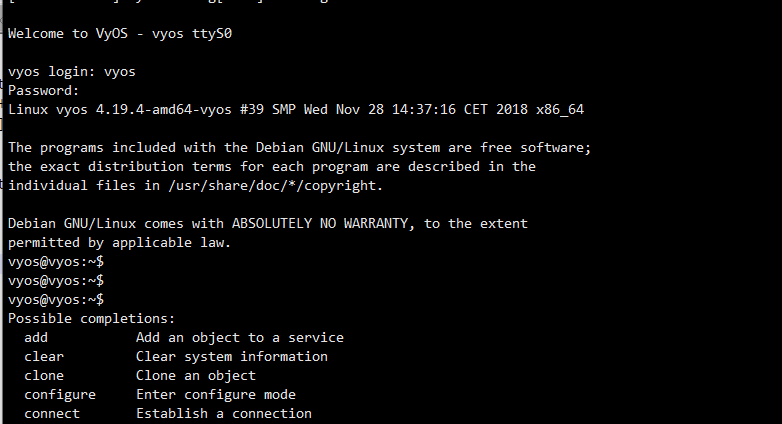

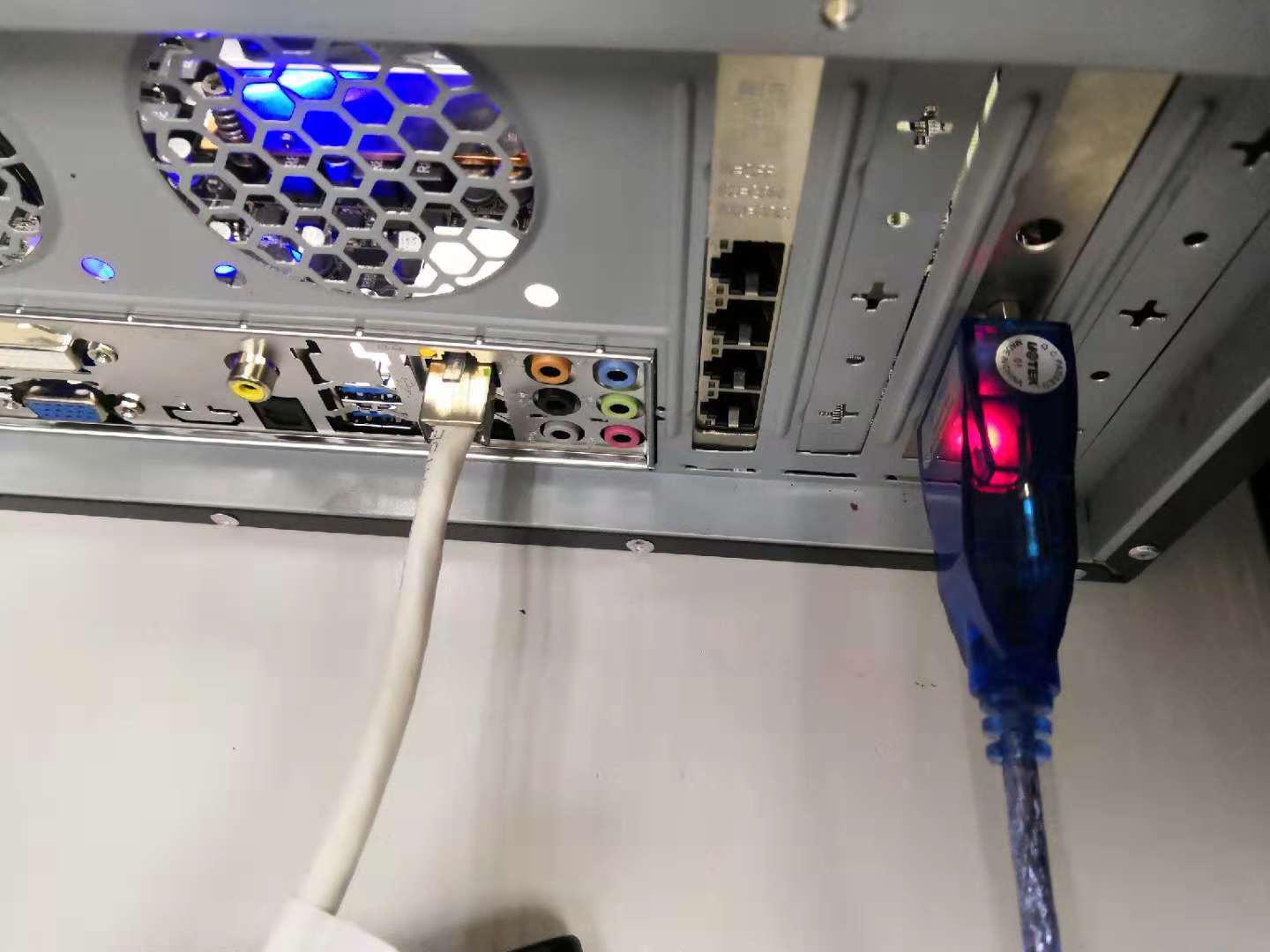

Since there is a project to deploy an x86 VyOS as the router, After I install the system and I find out that I can use the console to connect to the system just like other Cisco(H3C) routers rather than using the screen.

However, The Cisco router are using RS232-RJ45 port, and I just spot that the H61 MotherBoard ais using jcom jumper to the DB9 male port. And my USB-RS232 converter is also with the DB9 male port, so I’d like to make a jcom to DB9 female plan.

I just find out some jcom and DB9 information here,

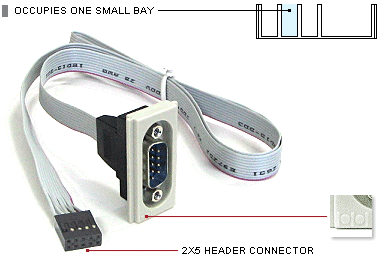

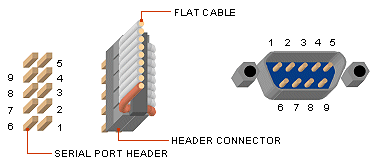

jcom to DB9 male img

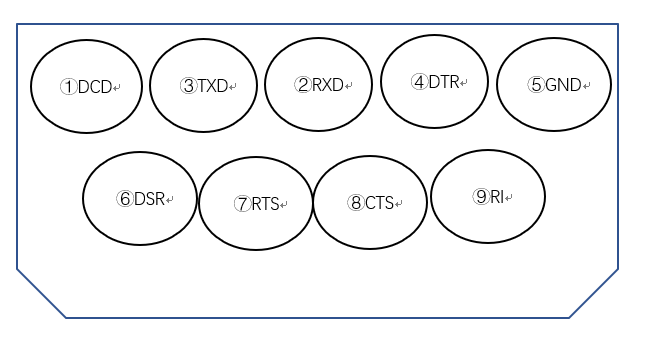

JCOM jumper on the motherboard

② RXD	④ DTR	⑥ DSR	⑧ CTS	EMPTY
① DCD	③ TXD	⑤ GND	⑦ RTS	⑨ RI

jcom jumper

JCOM line

First is red -> -> ->

①DCD ②RXD ③TXD ④DTR ⑤GND ⑥DSR ⑦RTS ⑧CTS ⑨RI

jcom line

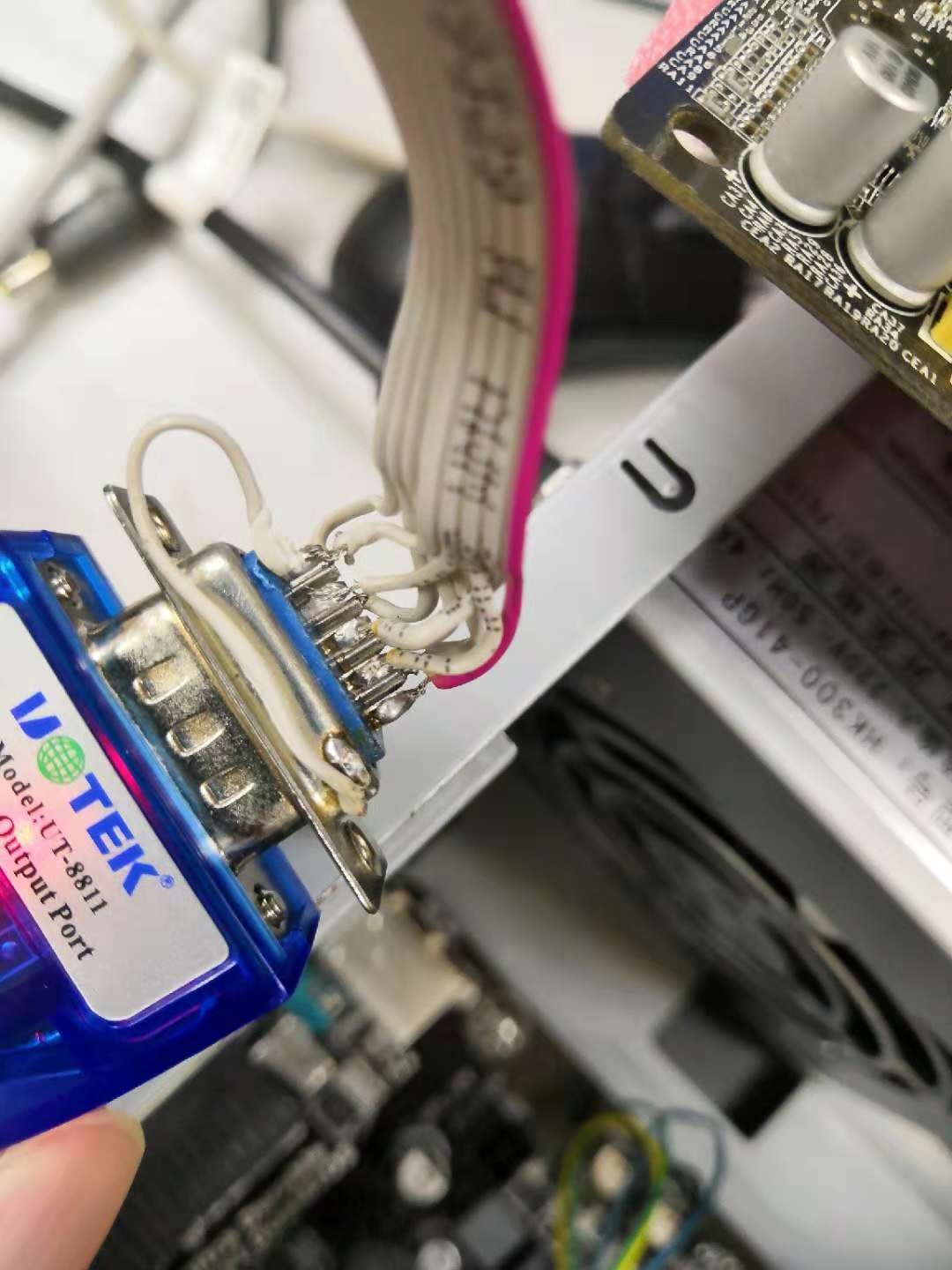

As usual, when communicating via the RS232, a PC is as the DTE, but as I am using the PC being the router, it is becoming the DCE, so it’s essential to switch the RXD and TXD.

Front view

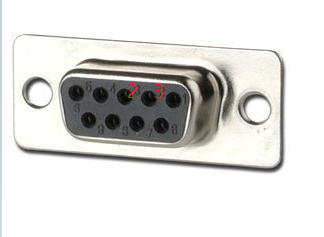

DB9 female Front view
