OpenWRT通过3G Modem加asterisk将GSM通话转为SIP

By , on , tagged: 🏷️Networking  🏷️Operating

本文主要实现OpenWRT系统通过Huawei 3G Modem加asterisk套件将GSM通话转为SIP通话

安装openwrt下的asterisk16套件

opkg update
opkg install asterisk16-app-system asterisk16-chan-dongle asterisk16-pjsip asterisk16-codec-ulaw asterisk16-codec-alaw asterisk16-res-rtp-asterisk asterisk16-bridge-simple

调整PJSIP作为默认服务,并且新增几个PJSIP账户,用以测试内线通

/etc/asterisk/pjsip.conf

[transport-udp]
type=transport
protocol=udp    ;udp,tcp,tls,ws,wss
bind=0.0.0.0

[6003]
type=endpoint
transport=transport-udp
context=from-internal
disallow=all
allow=ulaw
auth=6003-auth
aors=6003

[6003-auth]
type=auth
auth_type=userpass
password=6003
username=6003

[6003]
type=aor
max_contacts=1



[6004]
type=endpoint
transport=transport-udp
context=from-internal
disallow=all
allow=ulaw
auth=6004-auth
aors=6004

[6004-auth]
type=auth
auth_type=userpass
password=6004
username=6004

[6004]
type=aor
max_contacts=1

新增分机拨打模板,

/etc/asterisk/extension.conf

[from-internal]
exten => _Z.,1,Dial(PJSIP/${EXTEN},60,Trg)
same => n,Hangup()

用asterisk查看分机状态,拨打过程中pjsip show endpoints中显示的状态会从Not in use转换为In use

asterisk -rvvvv
OpenWrt*CLI> pjsip show contacts

  Contact:  <Aor/ContactUri..............................> <Hash....> <Status> <RTT(ms)..>
==========================================================================================

  Contact:  6001/sip:6001@192.168.234.127:53117;transport= 378e2db08b NonQual         nan
  Contact:  6001/sip:6001@192.168.234.127:53117;transport= 378e2db08b NonQual         nan
  Contact:  6003/sip:6003@192.168.234.158:49989;transport= 2ec100f865 NonQual         nan
  Contact:  6003/sip:6003@192.168.234.158:49989;transport= 2ec100f865 NonQual         nan
  Contact:  6004/sip:6004@192.168.104.11:5060              586381001a NonQual         nan
  Contact:  6004/sip:6004@192.168.104.11:5060              586381001a NonQual         nan

Objects found: 6

    -- PJSIP/6001-00000005 is ringing
    -- PJSIP/6001-00000005 is ringing
       > 0x2262b00 -- Strict RTP learning after remote address set to: 192.168.234.127:52518
    -- PJSIP/6001-00000005 answered PJSIP/6004-00000004
       > 0x2270c60 -- Strict RTP learning after remote address set to: 192.168.104.11:11866
    -- Channel PJSIP/6001-00000005 joined 'simple_bridge' basic-bridge <ee120657-8627-4868-b677-cb0d896a2b5a>
    -- Channel PJSIP/6004-00000004 joined 'simple_bridge' basic-bridge <ee120657-8627-4868-b677-cb0d896a2b5a>
       > 0x2262b00 -- Strict RTP switching to RTP target address 192.168.234.127:52518 as source
       > 0x2270c60 -- Strict RTP switching to RTP target address 192.168.104.11:11866 as source
OpenWrt*CLI> pjsip show endpoints

 Endpoint:  <Endpoint/CID.....................................>  <State.....>  <Channels.>
    I/OAuth:  <AuthId/UserName...........................................................>
        Aor:  <Aor............................................>  <MaxContact>
      Contact:  <Aor/ContactUri..........................> <Hash....> <Status> <RTT(ms)..>
  Transport:  <TransportId........>  <Type>  <cos>  <tos>  <BindAddress..................>
   Identify:  <Identify/Endpoint.........................................................>
        Match:  <criteria.........................>
    Channel:  <ChannelId......................................>  <State.....>  <Time.....>
        Exten: <DialedExten...........>  CLCID: <ConnectedLineCID.......>
==========================================================================================

 Endpoint:  6001                                                 In use        1 of inf
     InAuth:  6001-auth/6001
        Aor:  6001                                               1
      Contact:  6001/sip:6001@192.168.234.127:53117;transp 378e2db08b NonQual         nan
  Transport:  transport-udp             udp      0      0  0.0.0.0:5060
    Channel: PJSIP/6001-00000005/AppDial                         Up            00:00:04
        Exten:                           CLCID: "6004" <6004>

 Endpoint:  6002                                                 Unavailable   0 of inf
     InAuth:  6002-auth/6002
        Aor:  6002                                               1
  Transport:  transport-udp             udp      0      0  0.0.0.0:5060

 Endpoint:  6003                                                 Not in use    0 of inf
     InAuth:  6003-auth/6003
        Aor:  6003                                               1
      Contact:  6003/sip:6003@192.168.234.158:49989;transp 2ec100f865 NonQual         nan
  Transport:  transport-udp             udp      0      0  0.0.0.0:5060

 Endpoint:  6004                                                 In use        1 of inf
     InAuth:  6004-auth/6004
        Aor:  6004                                               1
      Contact:  6004/sip:6004@192.168.104.11:5060          586381001a NonQual         nan
  Transport:  transport-udp             udp      0      0  0.0.0.0:5060
    Channel: PJSIP/6004-00000004/Dial                            Up            00:00:04
        Exten: 6001                      CLCID: "" <6001>


Objects found: 4

       > 0x2270c60 -- Strict RTP learning complete - Locking on source address 192.168.104.11:11866
       > 0x2262b00 -- Strict RTP learning complete - Locking on source address 192.168.234.127:52518

有条件的情况下建议可以考虑使用IAX分机替代SIP分机,这样只需要NAT打通一个UDP端口就能通话,而不用像SIP那样要考虑ALG,ICE,STUN等方案

下面是新增一个IAX分机的用例

opkg update
opkg install asterisk16-chan-iax2

/etc/asterisk/iax.conf

[general]
bindport=4569
bindaddr=0.0.0.0
iaxcompat=yes
nochecksums=yes
disallow=all
allow=ulaw

[6010]
type=friend
username=6010
secret=6010
context=from-internal
host=dynamic
callerid=6010<6010>

/etc/asterisk/extensions.conf

[from-internal]
exten => 6010,1,Dial(IAX2/6010,60,Trg)

由于3G modem还没到货,所以目前先更新到这里,等到货后继续配置。

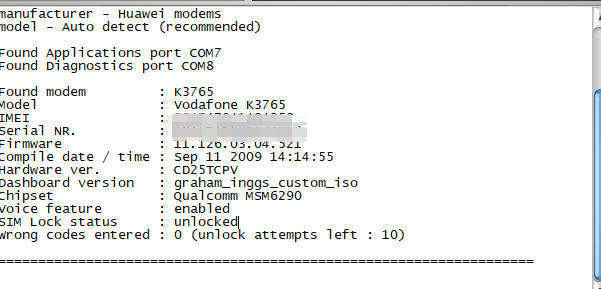

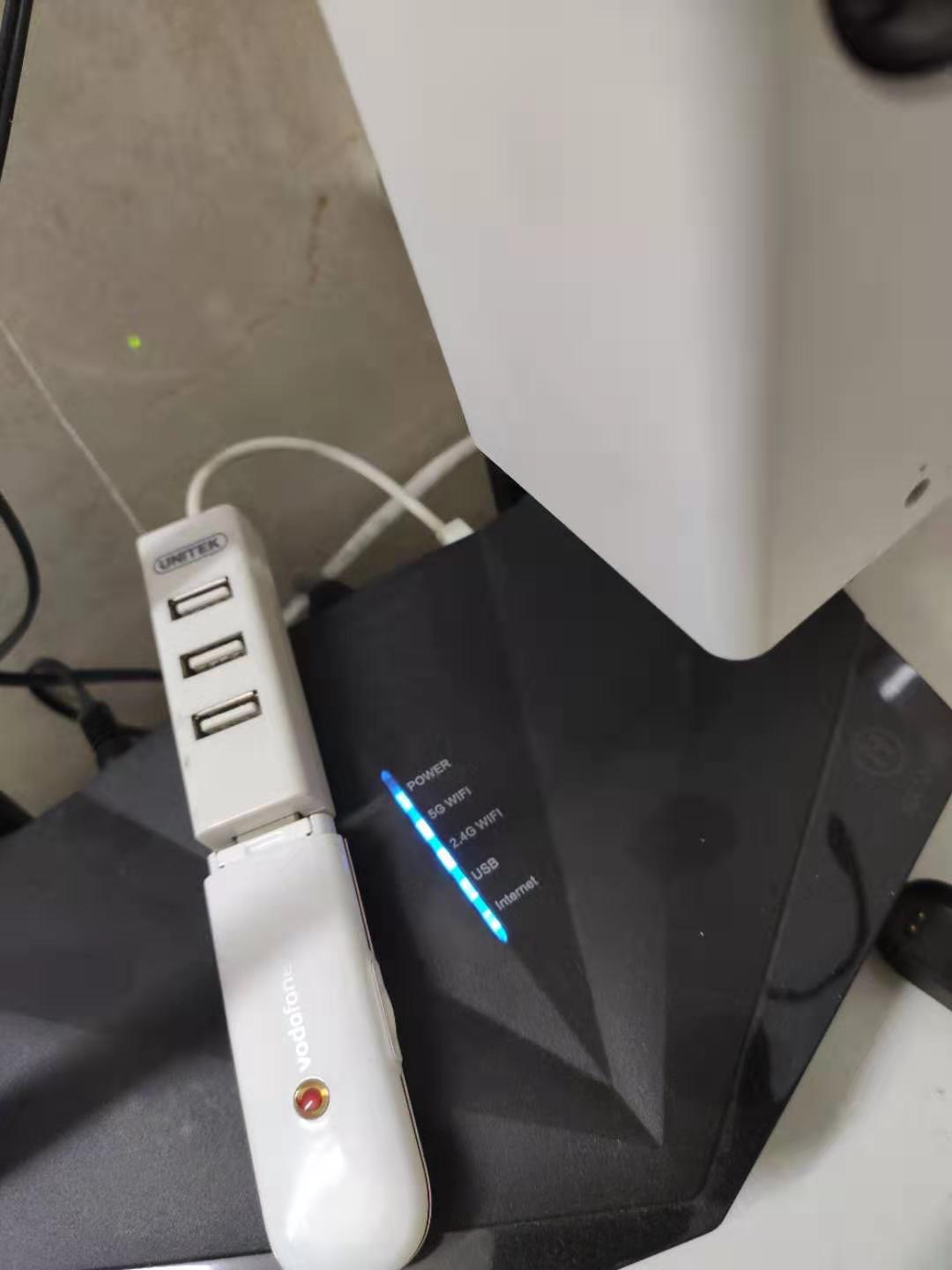

12月27号收货,继续更,用到的型号是Huawei K3765.

K3765 3G modem 1

K3765 3G modem 2 K3765 3G modem

在openwrt下配置dongle设备,请结合实际数据配置

/etc/asterisk/dongle.conf

[general]
interval=20
[defaults]
context=dongle-in
group=0
exten=+862022221234
[dongle0]
imei=123451234512345

通过asterisk控制台查一下设备状态,

asterisk -rvvvv
RiWifi*CLI> dongle show devices
ID           Group State      RSSI Mode Submode Provider Name  Model      Firmware          IMEI             IMSI             Number
dongle0      0     Free       16   3    3       FFFFFFFFFFFFFF K3765      11.126.03.04.521  123451234512345  123451234512345  Unknown

接下来新增呼出、呼入的分机配置

/etc/asterisk/extensions.conf

[from-internal]
exten => _1.,1,Dial(Dongle/g0/${EXTEN:1}) ;呼出设置,结合实际,我这边是加了"1"这个前缀,例如我的SIP分机要拨打10011,那么拨号就是110011
[dongle-in]
exten => +862022221234,1,Dial(IAX2/6010,60,Trg) ;呼入设置,我这边就是配置成所有呼叫直接转到IAX-6010分机,复杂点的可以做IVR,号码本,不过只有一路的电话就不需要搞这么复杂了。

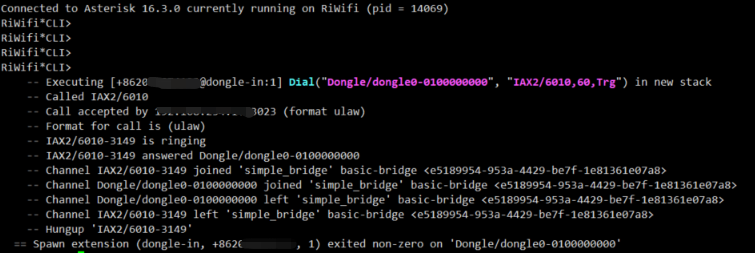

最后,拨号测试

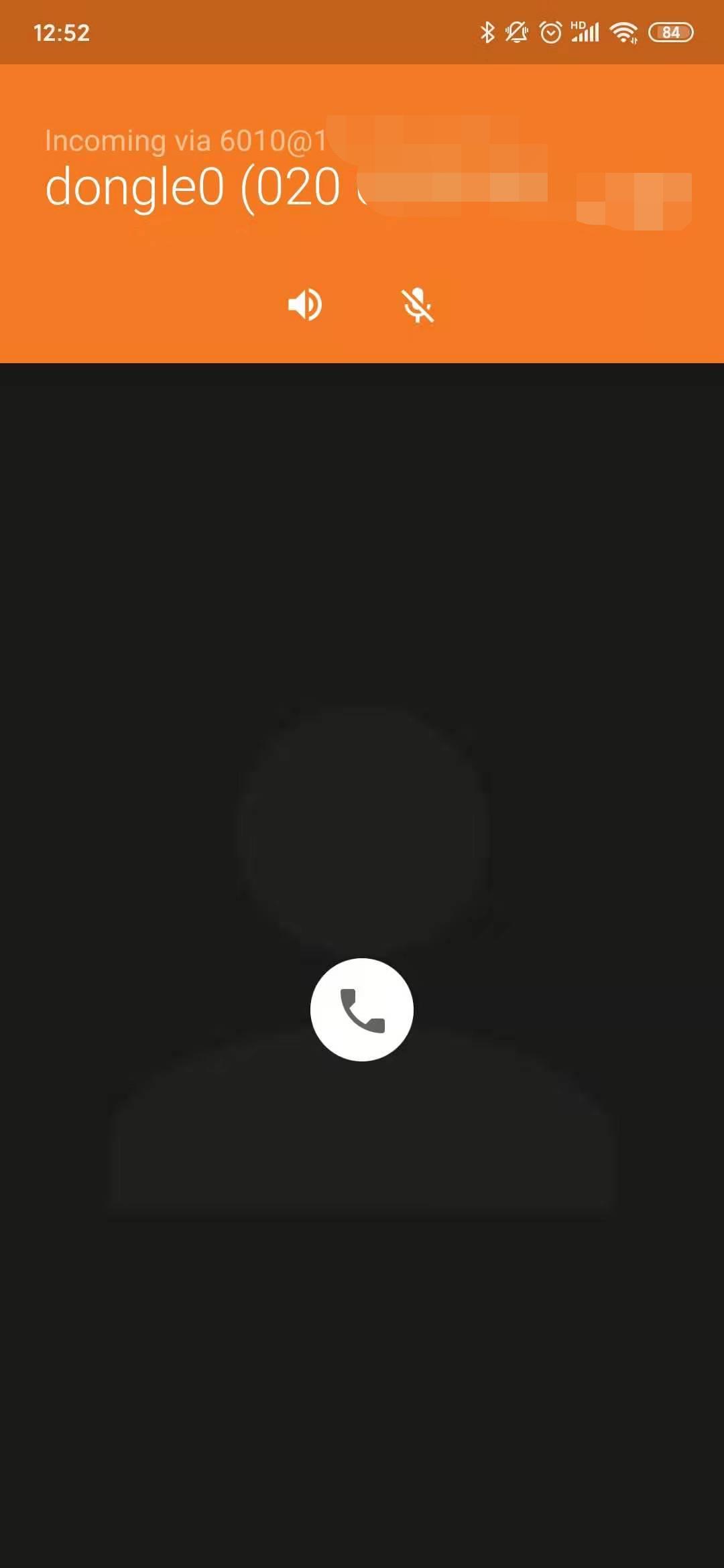

呼入测试

呼入测试1

呼入测试2

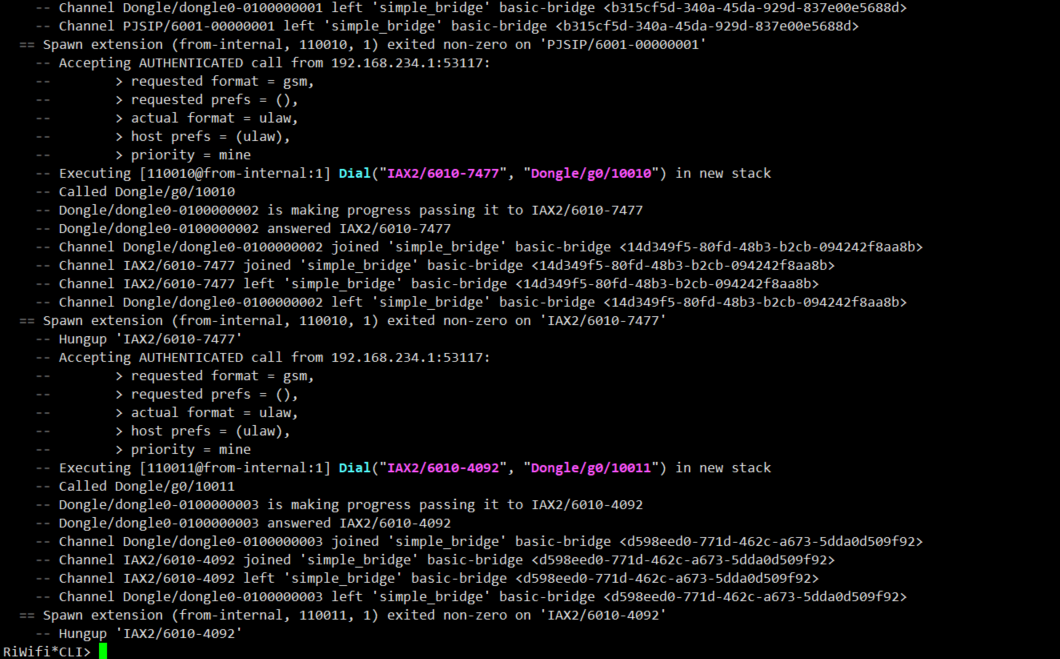

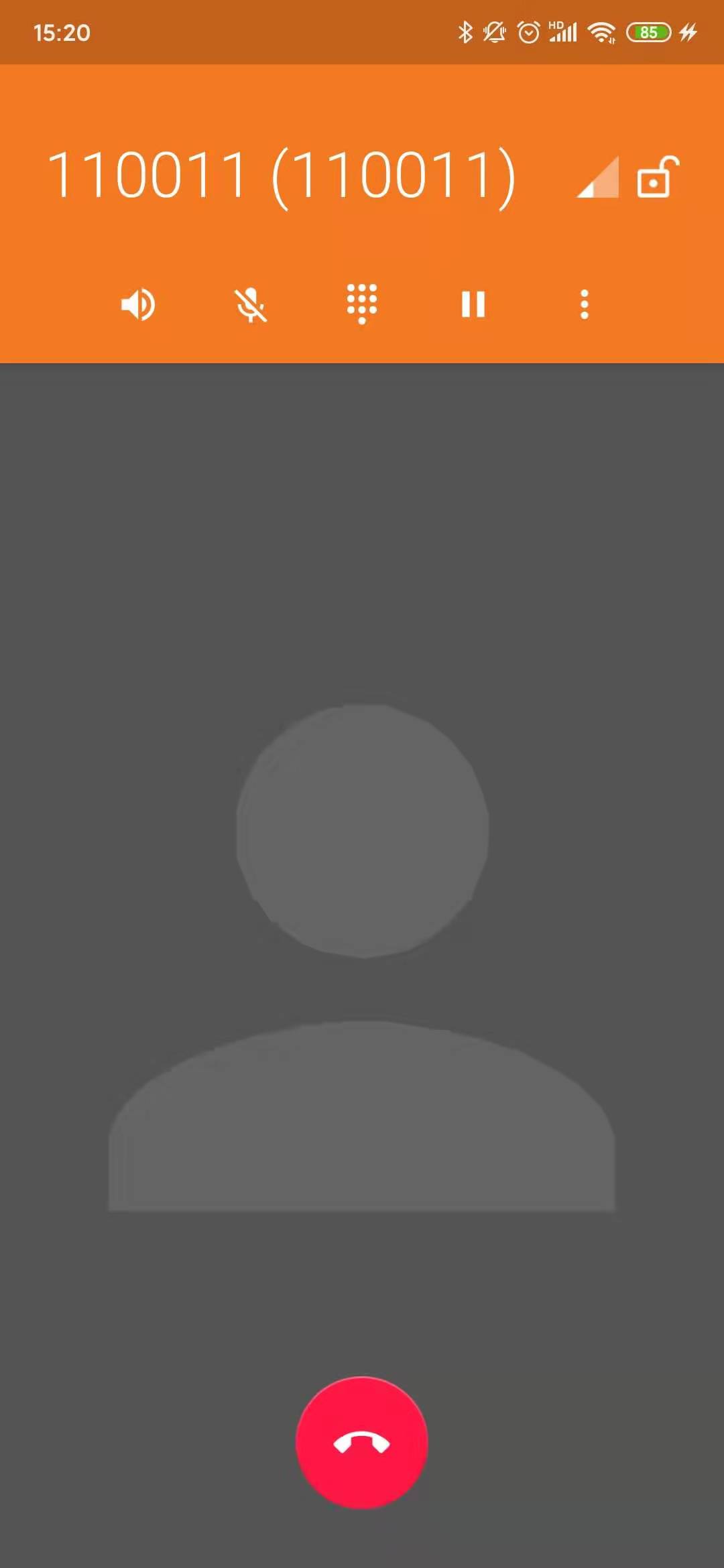

呼出测试

呼出测试1

呼出测试2



Articles are licensed under CC BY-NC 4.0
