OpenWRT结合tinc组自己的SDLAN

By , on , tagged: 🏷️Networking  🏷️Operating

本文主要实现在OpenWRT路由器以及不同系统下通过tinc switch mode搭建SDLAN内网服务器方便远程连接,

Switch Mode相对来说配置比较简单,各节点均在同一广播域内,方便调控,tinc节点本身通过DNAT+SNAT可以实现对不同网间端口的调通,

同时Switch Mode中各节点的hosts文件只需保证在公网地址的节点中全部拥有维护即可,其他节点只需维护本节点以及公网节点的hosts文件

下面主要分三步:

(1)公网节点的部署(Master节点)

(2)其他节点的部署(Slave节点)

(3)节点的NAT配置

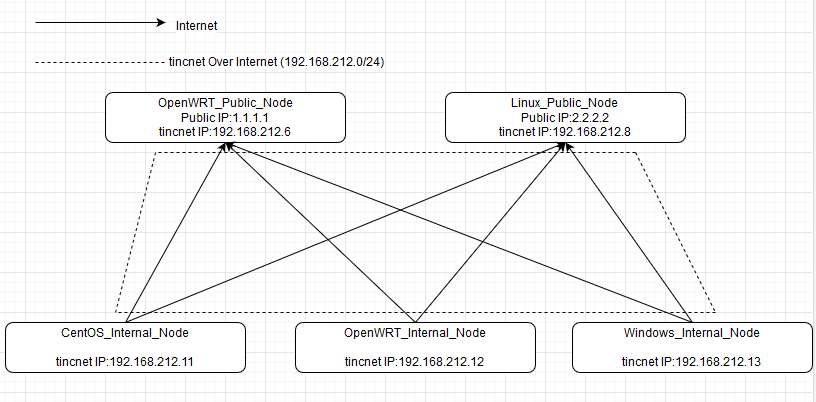

本次搭建的拓扑以下为例,两个Master节点,若干个Slave节点(以3个不同操作系统的为例)

Topo

(0)tinc的安装

各大Linux发行版基本都可以通过包管理对tinc进行安装

sudo yum install tinc
sudo apt install tinc

OpenWRT也可通过opkg安装tinc

opkg update
opkg install tinc

Windows可在官网下载

Windows中自带的TAP-Windwos版本比较低,建议可以考虑另外安装版本较新的TAP-Windows新建虚拟网卡而不是用tinc-vpn安装包中自带的TAP-Windows

(1)公网节点的部署(Master节点)

需要预先定义定义一个网络名 本次以tincnet为例NETNAME = tincnet

每个节点均需要以以下目录结构创建好配置文件夹

/etc/tinc/tincnet

 % ls -la
total 24
drwxr-xr-x 3 root root 4096 Mar  4 15:07 .
drwxr-xr-x 4 root root 4096 Mar  4 15:06 ..
drwxr-xr-x 2 root root 4096 Mar  4 15:06 hosts
-rwxr-xr-x 1 root root  198 Mar  4 15:06 tinc.conf
-rwxr-xr-x 1 root root   72 Mar  4 15:06 tinc-down
-rwxr-xr-x 1 root root   81 Mar  4 15:06 tinc-up

tinc.conf为tinc的配置文件,tinc-down,tinc-up为启动tinc时执行的脚本,一般用作启动网络,hosts文件夹中存的是各个结点的连接交换信息。

下面先说其中一个节点Linux_Public_Node(2.2.2.2)

各个文件配置情况:

tinc.conf

 % cat tinc.conf
Name = Linux_Public_Node #此节点名称为Linux_Public_Node
AddressFamily = ipv4 #Internet走IPv4协议
BindToAddress = * 11001 #监听端口
Interface = tinctun0 #tincnet虚拟网卡
Device = /dev/net/tun
#Mode = <router|switch|hub> (router)
Mode = switch #设置使用Swtich模式 默认为router
ConnectTo = OpenWRT_Public_Node  #连接另一公网Master节点保持双活
Cipher = aes-128-cbc #对称加密算法

tinc-up tinc启动脚本,给对应网卡加IP

 % cat tinc-up
#!/bin/sh
ip link set $INTERFACE up
ip addr add 192.168.212.8/24 dev $INTERFACE

tinc-down tinc停止脚本,关停对应网卡

 %  cat tinc-down
#!/bin/sh
ip addr del 192.168.212.8/24 dev $INTERFACE
ip link set $INTERFACE down

hosts文件夹 主要保存各节点的交换信息,由于是第一次创建,里面应该是空文件夹,需要先创建一个自己节点的链接信息

 cd hosts
 touch Linux_Public_Node
 % cat Linux_Public_Node
Address = 2.2.2.2 #公网地址
Subnet = 192.168.212.8/32 #tincnetIP信息
Port = 11001 #公网监听端口

创建完成后通过tincd生成非对称密钥信息

 % sudo tincd -n tincnet -K
Generating 2048 bits keys:
.............+++++ p
........................+++++ q
Done.
Please enter a file to save private RSA key to [/etc/tinc/tincnet/rsa_key.priv]:
Please enter a file to save public RSA key to [/etc/tinc/tincnet/hosts/Linux_Public_Node]:

现在tincnet文件夹中会生成私钥,对应的公钥信息会补全到host/Linux_Public_Node

 % ls /etc/tinc/tincnet
hosts  rsa_key.priv  tinc.conf	tinc-down  tinc-up

 % cat /etc/tinc/tincnet/hosts/Linux_Public_Node
Address = 2.2.2.2
Subnet = 192.168.212.8/32
Port = 11001
-----BEGIN RSA PUBLIC KEY-----
MIIBCgKCAQEAp7F+8s8lukRv0qaE5hzrQmuy2MPb8hlte/G0pcfnBCVjIL5foJ7P
LZQrTGTsKjRbPzJ9gfZUXiZRkaA+G6Q4DBOVEt41cTceZTgAzL3ief3H6MNXQ0xW
1Wo8kDNlg6g+QJq8iV5j7adJnEPivrDm4CWl8MRmVOckisnQbseKXeuzIYDhpZLA
nlIIGMzhk3OZoPn2xpdMbJqbR0K6SrPvYq7sT3eLn0NVUbyo9D1dmtwtOJy8wmaf
oYdwTvrMdXhNNUmemnswJt8T2j8rAerqnjqz5itN8dk9mZMTKLFZ44CNnJ8jl5pE
ma8lfUnAA/Qq7i9t74pVEvWcLg8HIry16QIDAQAB
-----END RSA PUBLIC KEY-----

至此,节点Linux_Public_Node(2.2.2.2)中的配置已经完成,

下面配置另外一个节点OpenWRT_Public_Node(1.1.1.1)

主要的配置文件生成过程节点Linux_Public_Node类似

生成后如下:

ls -la /etc/tinc/tincnet/
drwxr-xr-x    3 root     root          4096 Mar  4 15:32 .
drwxr-xr-x    4 root     root          4096 Mar  4 15:29 ..
drwxr-xr-x    2 root     root          4096 Mar  4 15:32 hosts
-rw-------    1 root     root          1680 Mar  4 15:32 rsa_key.priv
-rwxr-xr-x    1 root     root            72 Mar  4 15:30 tinc-down
-rwxr-xr-x    1 root     root            80 Mar  4 15:30 tinc-up
-rw-r--r--    1 root     root           218 Mar  4 15:31 tinc.conf

ls -la /etc/tinc/tincnet/hosts
drwxr-xr-x    2 root     root          4096 Mar  4 15:32 .
drwxr-xr-x    3 root     root          4096 Mar  4 15:32 ..
-rw-r--r--    1 root     root           484 Mar  4 15:32 OpenWRT_Public_Node

cat /etc/tinc/tincnet/tinc.conf
Name = OpenWRT_Public_Node
AddressFamily = ipv4
BindToAddress = * 11001
Interface = tinctun0
Device = /dev/net/tun
#Mode = <router|switch|hub> (router)
Mode = switch
ConnectTo = Linux_Public_Node
Cipher = aes-128-cbc

cat /etc/tinc/tincnet/tinc-up
#!/bin/sh
ip link set $INTERFACE up
ip addr add 192.168.212.6/24 dev $INTERFACE

cat /etc/tinc/tincnet/tinc-down
ip addr del 192.168.212.6/24 dev $INTERFACE
ip link set $INTERFACE down

cat /etc/tinc/tincnet/hosts/OpenWRT_Public_Node
Address = 1.1.1.1
Subnet = 192.168.212.6/32
Port = 11001
-----BEGIN RSA PUBLIC KEY-----
MIIBCgKCAQEA6Tzot1eXupi+NRCfr29iKbgiXEMW1Ol327WOrAwRtiwGgQIx8LcL
iy9m+sZEWVzlfvhMub6RVM4xlZ39ghYn2OFP4x9K4D6O/HTZHbamuLOEG5zRyVGK
EN+tTStIeEaiHad04QR+6ZFB+UO7WFcBzwVh/rysOL96KaUoU9VeYHVAIkubNsvA
aNSFbmqGYpl5FrXv+sJjMyGRXjc9Lb3q/FWmPApvo/9FTElHx0xH7wvAZnc7mTCH
DB6DN62A1McgydGpn7NLnuFFEeVQf3SI9TqvajcA3vXS8P9RWuRoF5HivZIL5Ebn
FJg0UkyJcWXHUNRczdfTACF6ha0ewk8T9QIDAQAB
-----END RSA PUBLIC KEY-----

OpenWRT下需要再对/etc/config/tinc进行以下修改

cat /etc/config/tinc
config tinc-net tincnet
	option enabled 1
	option Name OpenWRT_Public_Node

config tinc-host OpenWRT_Public_Node
	option enabled 1
	option net tincnet

下面要做的就是先将两个Master节点的hosts文件夹各自补充对方的节点信息,简单来说就是复制自己那份过去对面,保证两个节点的hosts文件夹都有全部节点的hosts信息

% ls -la /etc/tinc/tincnet/hosts
total 16
drwxr-xr-x 2 root root 4096 Mar  4 15:37 .
drwxr-xr-x 3 root root 4096 Mar  4 15:25 ..
-rw-r--r-- 1 root root  486 Mar  4 15:25 Linux_Public_Node
-rw-r--r-- 1 root root  485 Mar  4 15:37 OpenWRT_Public_Node

% cat Linux_Public_Node
Address = 2.2.2.2
Subnet = 192.168.212.8/32
Port = 11001
-----BEGIN RSA PUBLIC KEY-----
MIIBCgKCAQEAp7F+8s8lukRv0qaE5hzrQmuy2MPb8hlte/G0pcfnBCVjIL5foJ7P
LZQrTGTsKjRbPzJ9gfZUXiZRkaA+G6Q4DBOVEt41cTceZTgAzL3ief3H6MNXQ0xW
1Wo8kDNlg6g+QJq8iV5j7adJnEPivrDm4CWl8MRmVOckisnQbseKXeuzIYDhpZLA
nlIIGMzhk3OZoPn2xpdMbJqbR0K6SrPvYq7sT3eLn0NVUbyo9D1dmtwtOJy8wmaf
oYdwTvrMdXhNNUmemnswJt8T2j8rAerqnjqz5itN8dk9mZMTKLFZ44CNnJ8jl5pE
ma8lfUnAA/Qq7i9t74pVEvWcLg8HIry16QIDAQAB

% cat OpenWRT_Public_Node
Address = 1.1.1.1
Subnet = 192.168.212.6/32
Port = 11001
-----BEGIN RSA PUBLIC KEY-----
MIIBCgKCAQEA6Tzot1eXupi+NRCfr29iKbgiXEMW1Ol327WOrAwRtiwGgQIx8LcL
iy9m+sZEWVzlfvhMub6RVM4xlZ39ghYn2OFP4x9K4D6O/HTZHbamuLOEG5zRyVGK
EN+tTStIeEaiHad04QR+6ZFB+UO7WFcBzwVh/rysOL96KaUoU9VeYHVAIkubNsvA
aNSFbmqGYpl5FrXv+sJjMyGRXjc9Lb3q/FWmPApvo/9FTElHx0xH7wvAZnc7mTCH
DB6DN62A1McgydGpn7NLnuFFEeVQf3SI9TqvajcA3vXS8P9RWuRoF5HivZIL5Ebn
FJg0UkyJcWXHUNRczdfTACF6ha0ewk8T9QIDAQAB
-----END RSA PUBLIC KEY-----

最后通过systemctl,OpenWRT通过RC启动tinc, 并互ping测试一下

#Linux_Public_Node systemctl
systemctl start tinc@tincnet
#OpenWRT_Public_Node rc
/etc/init.d/tinc start

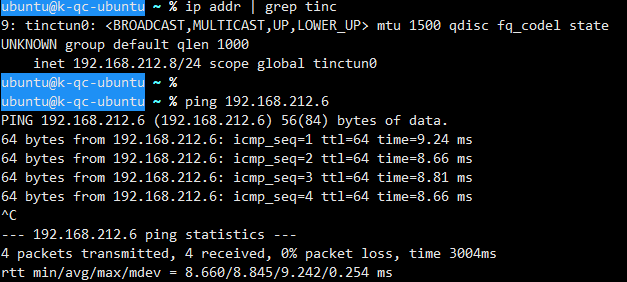

ping from Linux_Public_Node(192.168.212.8) to OpenWRT_Public_Node(192.168.212.6)

Topo

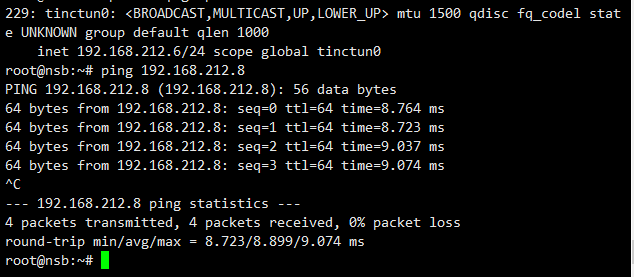

ping from OpenWRT_Public_Node(192.168.212.6) to Linux_Public_Node(192.168.212.8)

Topo

(2)其他节点的部署(Slave节点)

Linux系统以节点OpenWRT_Internal_Node(192.168.212.12)为例

同样,先按照之前的文件夹结构创建好对应目录,并复制两个Master节点hosts信息到hosts文件夹,

ls -la /etc/tinc/tincnet/
drwxr-xr-x    3 root     root             0 Mar  4 16:01 .
drwxr-xr-x    4 root     root             0 Mar  4 15:52 ..
drwxr-xr-x    2 root     root             0 Mar  4 16:01 hosts
-rw-------    1 root     root          1676 Mar  4 16:01 rsa_key.priv
-rwxr-xr-x    1 root     root            74 Mar  4 15:58 tinc-down
-rwxr-xr-x    1 root     root            82 Mar  4 15:58 tinc-up
-rw-r--r--    1 root     root           209 Mar  4 16:00 tinc.conf

ls -la /etc/tinc/tincnet/hosts/
drwxr-xr-x    2 root     root             0 Mar  4 16:01 .
drwxr-xr-x    3 root     root             0 Mar  4 16:01 ..
-rw-r--r--    1 root     root             0 Mar  4 15:58 Linux_Public_Node
-rw-r--r--    1 root     root           454 Mar  4 16:01 OpenWRT_Internal_Node
-rw-r--r--    1 root     root             0 Mar  4 15:58 OpenWRT_Public_Node

cat /etc/tinc/tincnet/
hosts/        rsa_key.priv  tinc-down     tinc-up       tinc.conf

cat /etc/tinc/tincnet/tinc.conf
Name = OpenWRT_Internal_Node
Interface = tinctun0
Device = /dev/net/tun
#Mode = <router|switch|hub> (router)
Mode = switch
ConnectTo = Linux_Public_Node #此处需要配置链接到两个主节点
ConnectTo = OpenWRT_Public_Node #此处需要配置链接到两个主节点
Cipher = aes-128-cbc

cat /etc/tinc/tincnet/tinc-up
#!/bin/sh
ip link set $INTERFACE up
ip addr add 192.168.212.12/24 dev $INTERFACE

cat /etc/tinc/tincnet/tinc-down
ip addr del 192.168.212.12/24 dev $INTERFACE
ip link set $INTERFACE down

cat /etc/tinc/tincnet/hosts/OpenWRT_Internal_Node
Subnet = 192.168.212.21/32 #只需要配置Subnet参数

-----BEGIN RSA PUBLIC KEY-----
MIIBCgKCAQEAnU1maDEvbyC2XJLC8aiiwixR+einVu9gyJ4Pi1uhNMSJuVHB0HLQ
s16eOJvoEeJ4q6x0YLwjVJLlcLRW46wUAr1eMLjiovGKcYL8fZCg+Agms3+0y2SM
MaKi5fgBKjXLhdeBx4pvLaBlgYz4BP7pcVLgI0/NHBR6K1PClUtYDN1xCt5SOpiF
XIwyIawwIs6mxLknm7M0a68j7e3ovIsBOW7nLVL0GpLXVJBjAbs5z00uNOVaNJkz
tvttShGgaa+B6o1Xy8gLwB84wKNUXZbmkLobOK7h0qYgEmnQscR8Rhw5G9UJfU8G
8nrPdRRCZnDR5xRpuy0rRJG7gAzpEJ9kHwIDAQAB
-----END RSA PUBLIC KEY-----

#以下为OpenWRT系统需要配置
cat /etc/config/tinc
config tinc-net tincnet
	option enabled 1
	option Name OpenWRT_Internal_Node

config tinc-host OpenWRT_Internal_Node
	option enabled 1
	option net tincnet

然后需要复制hosts文件夹的本节点信息host\OpenWRT_Internal_Node到Master节点的hosts文件夹中,重启tinc服务即可通,

ping 192.168.212.8
PING 192.168.212.8 (192.168.212.8): 56 data bytes
64 bytes from 192.168.212.8: seq=0 ttl=64 time=25.108 ms
64 bytes from 192.168.212.8: seq=1 ttl=64 time=8.567 ms
64 bytes from 192.168.212.8: seq=2 ttl=64 time=8.891 ms
64 bytes from 192.168.212.8: seq=3 ttl=64 time=8.745 ms
^C
--- 192.168.212.8 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 8.567/12.827/25.108 ms

ping 192.168.212.6
PING 192.168.212.6 (192.168.212.6): 56 data bytes
64 bytes from 192.168.212.6: seq=0 ttl=64 time=7.328 ms
64 bytes from 192.168.212.6: seq=1 ttl=64 time=6.871 ms
64 bytes from 192.168.212.6: seq=2 ttl=64 time=7.205 ms
64 bytes from 192.168.212.6: seq=3 ttl=64 time=7.130 ms
^C
--- 192.168.212.6 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 6.871/7.133/7.328 ms

再配置一个Windows系统的,

首先需要新增一个TAP-Windows的虚拟网卡,以另外安装的新版本TAP-Windows驱动为例,管理员权限运行CMD

C:\Users\k>cd C:\Program Files\TAP-Windows\bin

C:\Program Files\TAP-Windows\bin>.\addtap.bat

C:\Program Files\TAP-Windows\bin>rem Add a new TAP virtual ethernet adapter

C:\Program Files\TAP-Windows\bin>"C:\Program Files\TAP-Windows\bin\tapinstall.exe" install "C:\Program Files\TAP-Windows\driver\OemVista.inf" tap0901
Device node created. Install is complete when drivers are installed...
Updating drivers for tap0901 from C:\Program Files\TAP-Windows\driver\OemVista.inf.
Drivers installed successfully.

C:\Program Files\TAP-Windows\bin>pause
请按任意键继续. . .

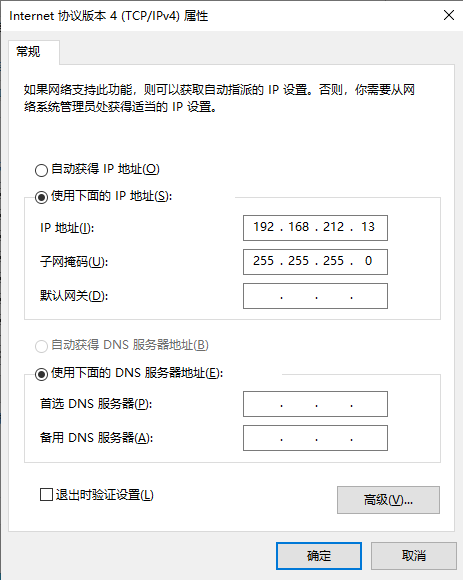

到网络连接管理中重命名网卡名称并手动配置IP地址

Topo

Topo

然后创建好文件目录

C:\Program Files\tinc\tincnet 的目录

2020/03/04  16:14    <DIR>          .
2020/03/04  16:14    <DIR>          ..
2020/03/04  16:16    <DIR>          hosts
2020/03/04  16:17               167 tinc.conf
               1 个文件            167 字节
               3 个目录 144,868,106,240 可用字节

C:\Program Files\tinc\tincnet\hosts 的目录

2020/03/04  16:16    <DIR>          .
2020/03/04  16:16    <DIR>          ..
2020/03/04  16:16               499 Linux_Public_Node
2020/03/04  16:16               496 OpenWRT_Public_Node
2020/03/04  16:16                27 Windows_Internal_Node
               3 个文件          1,022 字节
               2 个目录 144,864,964,608 可用字节

C:\Program Files\tinc\tincnet\tinc.conf

Name = Windows_Internal_Node
Interface = tinctun0
#Mode = <router|switch|hub> (router)
Mode = switch
ConnectTo = OpenWRT_Public_Node
ConnectTo = Linux_Public_Node

C:\Program Files\tinc\tincnet\hosts\Windows_Internal_Node

Subnet = 192.168.212.116/32

生成密钥

C:\Program Files\tinc>.\tinc.exe -n tincnet
tinc.tincnet> generate-rsa-keys
Generating 2048 bits keys:
...................................................+++ p
......................+++ q
Done.
Please enter a file to save private RSA key to [C:/Program Files\tinc\tincnet\rsa_key.priv]:
Please enter a file to save public RSA key to [C:/Program Files\tinc\tincnet\hosts\Windows_Internal_Node]:
tinc.tincnet> quit

C:\Program Files\tinc>

然后将带公钥信息的Windows_Internal_Node复制到两个Master节点上面重启节点

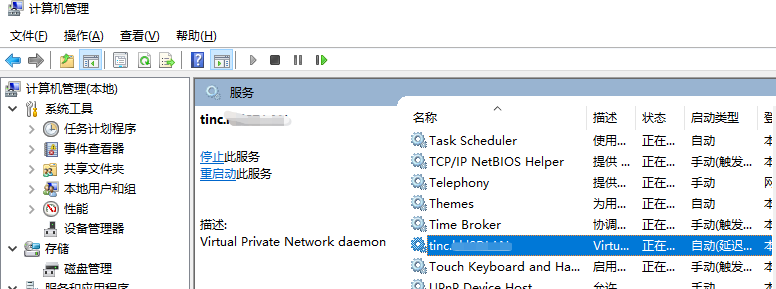

通过Windows计算机管理中的服务启动tinc

Topo

PING其他Slave节点测试

C:\Program Files\tinc>ping 192.168.212.12

正在 Ping 192.168.212.12 具有 32 字节的数据:
来自 192.168.212.12 的回复: 字节=32 时间=12ms TTL=64
来自 192.168.212.12 的回复: 字节=32 时间=11ms TTL=64
来自 192.168.212.12 的回复: 字节=32 时间=12ms TTL=64
来自 192.168.212.12 的回复: 字节=32 时间=11ms TTL=64

192.168.212.12 的 Ping 统计信息:
    数据包: 已发送 = 4已接收 = 4丢失 = 0 (0% 丢失)
往返行程的估计时间(以毫秒为单位):
    最短 = 11ms最长 = 12ms平均 = 11ms

如果还有新增节点,那么只需在节点本地创建好配置文件以及hosts信息,然后将本节点的hosts信息复制到Master节点上面即可。

(3)节点的NAT配置

这个是补充内容,比如Slave节点OpenWRT_Internal_Node的br-lan网卡有另一网段192.168.1.0/24的地址192.168.1.1,那么如果我想在Windows_Internal_Node通过OpenWRT_Internal_Node的 tincnet地址192.168.212.12:8080直接访问OpenWRT_Internal_Node 192.168.1.0/24网段中的192.168.1.20:80,那么可以可以通过NAT直接实现。

具体iptables配置如下:

iptables -A input_rule -i tinctun+ -j ACCEPT
iptables -A forwarding_rule -i tinctun+ -j ACCEPT
iptables -A forwarding_rule -o tinctun+ -j ACCEPT
iptables -A output_rule -o tinctun+ -j ACCEPT

iptables -t nat -A PREROUTING -i tinctun0 -p tcp -d 192.168.212.12 --dport 8080 -j DNAT --to-destination 192.168.1.20:80
iptables -t nat -A POSTROUTING -s 192.168.212.0/24 -o br-lan -j SNAT --to 192.168.1.1


Articles are licensed under CC BY-NC 4.0
